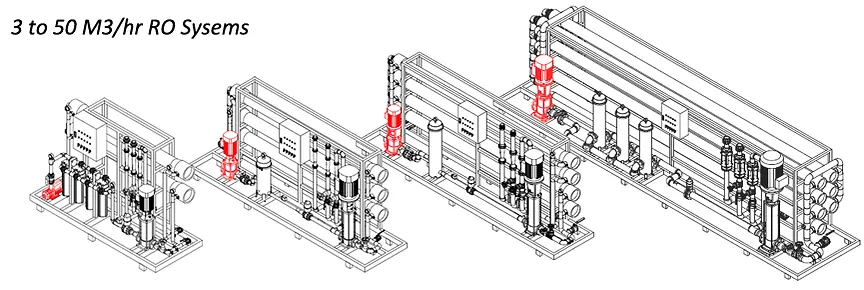

SLRL series Reverse Osmosis Systems

3,000-50,000LPH (72-1,200CMD)

SLRL series industrial reverse osmosis system is a durable piece of equipment which, with proper care and maintenance will last for many years. SLRL series RO systems are skid mounted with stainless steel frame, pre plumbed and pre wired allowing for quick installation and start up. Models are available with permeate outputs of between 3,000 and 50,000 litres/hr as shown in the specifications.

Standard Features

  • PLC control + mimic panel

  • Conductivity meter for permeate water

  • 300PSI FRP membrane housing

  • Grundfos multistage booster pump

  • 5 micron sediment pre-filter

  • SLS rotameters for permeate and concentrate stream

  • SLS pressure gauges for prefilter feed and RO feed

  • Danfoss low pressure switch

  • SS316 concentrate needle valve

  • Concentrate recycling with flow meter

  • Electro-plated SS304 skid frame

  • Provision for CIP and chemical dosing

  • Stainless steel pipeworks on high pressure side

  • UPVC SCH80 pipeworks on low pressure side


  • PLC Control with Mimic Panel

  • Fully Equipped and Customizable

  • Factory Tested and Preserved

  • 1-Year Limited Warranty

  • Manufactured in Taiwan

Available Options

  • RO membranes available with brands of
    Filmtec, Hydranautics, Vontron, and Toray

  • Higher pressure of multistage pump for feed TDS above 2,000 ppm or 5,000ppm

  • Digital sensors with remote monitoring

  • Raw water booster pump and controls

  • SS316 or Sanitary grade on pipes and vessels
